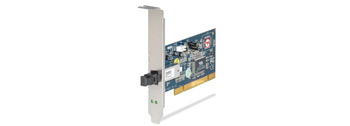

100BaseFX PCI Fiber Optic Network Interface Cards

Optical Fiber NICs -

100BaseFX PCI Fiber Optic Network Interface Cards


Signamax Connectivity Systems' 100BaseFX Fiber Optic Network Adapter Cards offer you more network bandwidth, better data security, and longer transmitting range. Fiber network adapter cards are the key to a complete fiber-to-the-desktop solution for businesses requiring the utmost in data security. In addition, fiber to the workstation is the answer to Radio-Frequency Interference (RFI) and Electro-Magnetic Interference (EMI) generated from heavy machinery in industrial applications that cause repeated data resends and reduced transmission efficiencies.
  • Single chip full/half duplex 10/100Mbps Fast Ethernet Management Controller.
  • IEEE 802.3/802.3u 10BaseT and 100BaseTX Compatible.
  • 32-bit PCI Bus-Master Interface.
  • CSR definition provides efficient PCI bus-mastering.
  • Enhancement MAC functions for 802.3 networking.
  • 802.1p Priority Transmit Support
  • STANDARDS COMPLIANCE

IEEE 802.3u 100BaseFX
PCI Specification 2.2
Supports Full and Half Duplex Operation

  • INSTALLATION

Plug ‘n Play

  • DRIVER SUPPORT

Novell NetWare, Server 3.x/4.x/5.0. Client 32, Windows 2000, 95, 98, NT3.51, NT4.0, WFW, Microsoft LAN, IBM LAN, OS/2 Warp and LAN Server, IBM Comm. Manager. FTP PC/TCP, SUN PC-NFS, Packet driver, SCO UNIX 4.x/5.x, Linux

  • ARCHITECTURE

32-Bit PCI Bus Mastering with auto PCI Auto I/O Address configuration. Boot ROM socket for remote booting

  • DIAGNOSTIC LEDS

LINK: Fiber connection detected
ACT: Data transmitted/received

  • EMISSIONS

FCC Class A and CE approved

  • WARRANTY

Lifetime Warranty
